Suitable for indoor and outdoor cross-regional transportation, e-commerce warehouses, and transfer between factory production lines and warehouses.

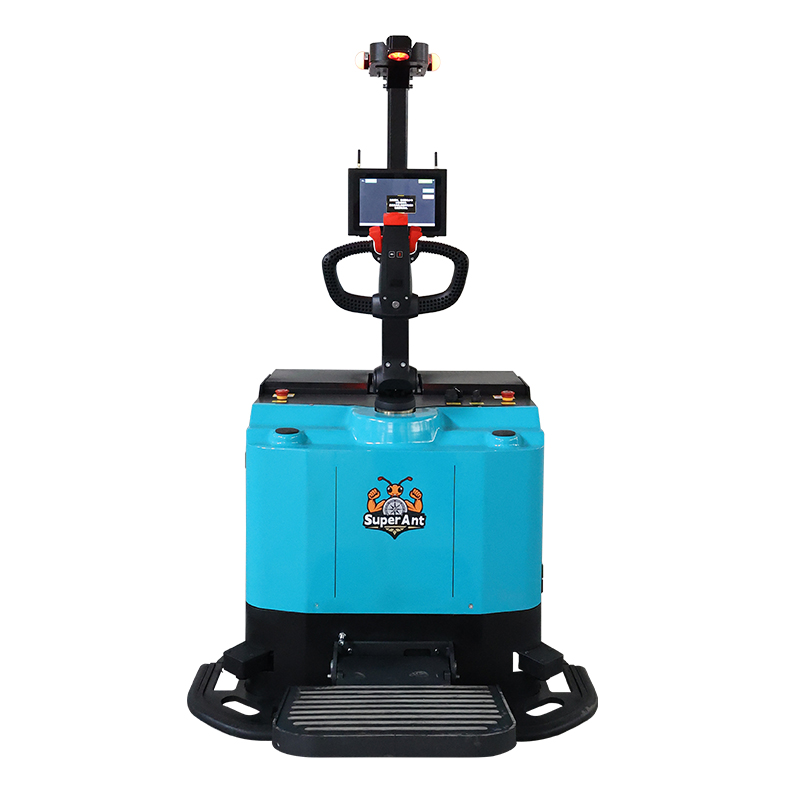

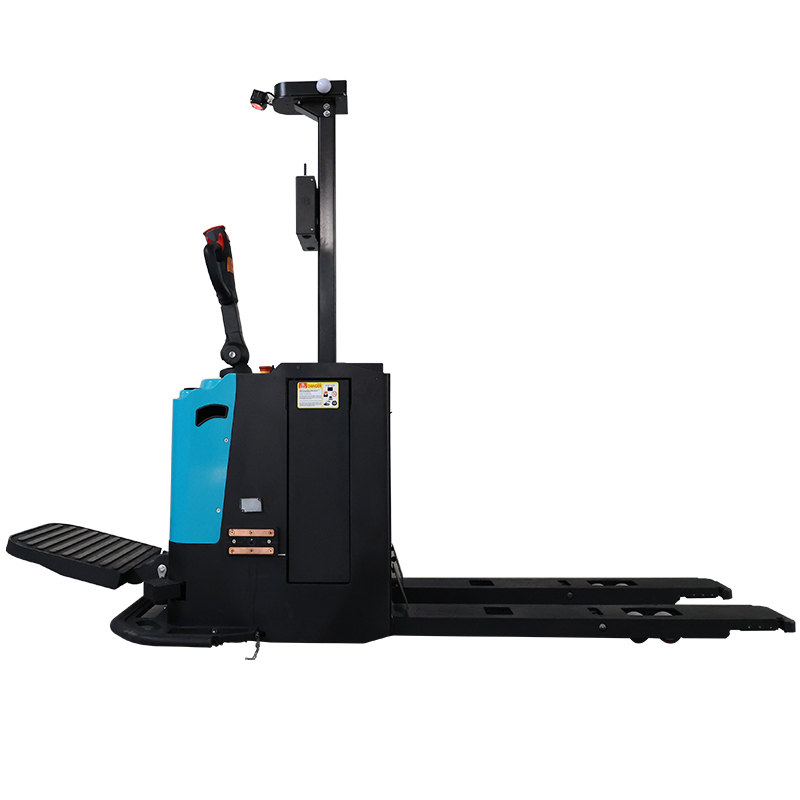

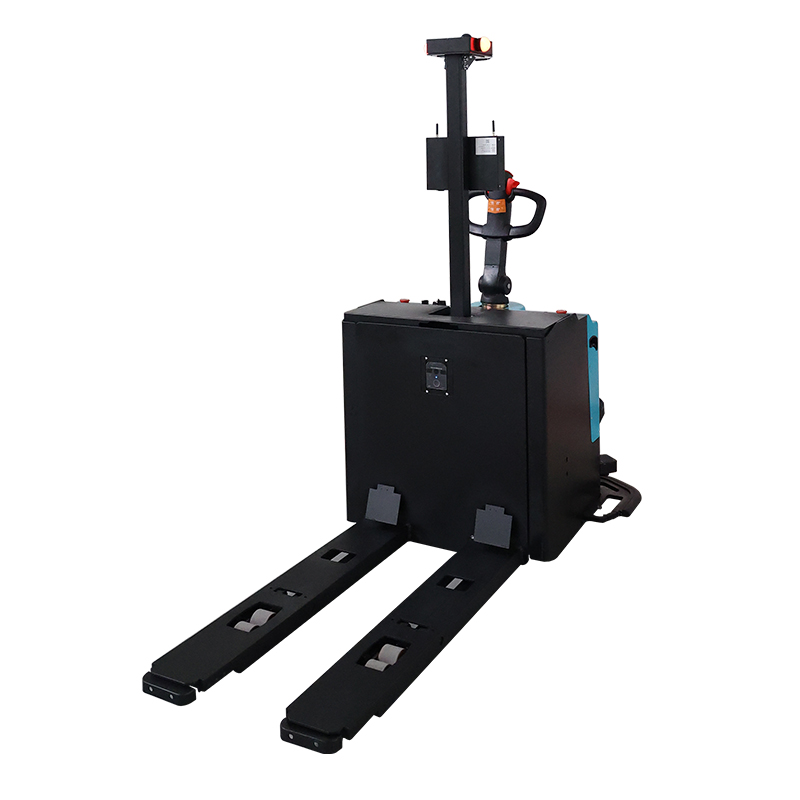

OUTDOOR PALLT TRUCK (SA-OPT20)
Autonomous Pallet Picking: Based on high-precision visual algorithms, the system intelligently locates pallets and adjusts fork direction even if pallets are irregularly placed.
Automated Transportation: Builds maps and positions itself using environmental natural features, eliminating the need for tracks or markers. It autonomously plans routes and drives.
Safety and Reliability: Features 3D vision, laser radar, dual emergency stop buttons, collision strips, and multiple layers of safety measures for 360° all-around protection.
| Item | Specification |
| Model | SA-OPT20 |
| Dimensions (LWH) | 1970*1070*1820 mm |
Safety System | 3D Laser + Vision Hybrid Navigation System |
| Sound & Light Alarm | |
| Emergency Stop | |
| Rated Load | 2,000 kg |
| Body Weight | 600 kg |
| No-load Speed | 1.36 m/s |
| Full-load Speed | 1.36 m/s |
| Turning Radius | 1625 mm |
| Lifting Height | 120 mm |
| Aisle Width (1000x1200 Pallet, 1000 Fork Entry) | 2470 mm |
| Load Center | 600mm |
| Network | WIFI/5G |
| Positioning Accuracy (mm,°) | ±10 mm |
| Battery Capacity | 48V/100Ah |
| Charging Method | Automatic/Manual |
| Battery Lasting | 10 hours |
Suitable for indoor and outdoor cross-regional transportation, e-commerce warehouses, and transfer between factory production lines and warehouses.
Handles frequent material loading/unloading with high docking precision.
Operates 24/7, supporting multi-shift workflows.
5–10 years (excluding wear parts like wheels and lasers).
24/7 remote technical support.
Scheduled maintenance during the warranty period.
Yes. SuperAnt self R&D and manufacture AGVs tailored to your functional needs and operational scenarios.
Designed for 24/7 continuous stable operation.
We’ve delivered successful projects in automotive, logistics, electronics, furniture, packaging, and more.
6–10 hours (varies by model). Battery capacity can be customized.
